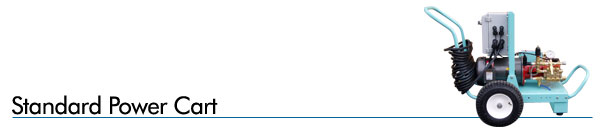

• Powder coated aluminum frame.
  • Power Cart is less than 27 inches wide and will fit through a standard door frame.
  • 10” diameter semi pneumatic tires on steel hubs.
  • 5 hp electric motor. Single or 3-phase motors are available in 60 Hz or 50 Hz.
    * We can match your power requirements.
  • Three piston positive displacement pump with internal recirculation valve. 4 GPM @ 2000 psi.
  • Adjustable Unloader Valve.
  • Thermal Relief Valve.
  • High Pressure Relief Valve.
  • Demand start and stop. Unit starts when diver pulls scrubber handle. Unit stops 45 seconds after diver releases the scrubber handle.
  • Stainless steel quick disconnects for all supply and return hoses.
  • Supply water filter—clear filter housing with 5 micron filter element.
  • Waterproof electrical controls (NEMA 4X).
  • Ground Fault Interrupt circuitry (GFI) contained in the control panel.
  • 30 feet of electrical power cord with waterproof plug and receptacle.
  • 6000 psi glycerin filled high pressure gauge.
  • All 316 stainless steel fittings.
  • On/off power switch control box.
  • Economy Power Cart can be customized for institution’s special requirements.

Notes:

  1. All power carts can be configured with a scrubhead for a turnkey system.
  2. We can match power requirements to suit your specific needs.
