Clamp Hub
  • Easy to install and remove
  • No pins required
  • No set screws
  • Aluminum with hard anodized finish
  • Fits all brands and all size scrubbers
  • Fits all brands and all size brushes
Rotary Brushes

At Meridian SubTek, we manufacture our own brushes. Every brush we make is custom designed for each institution’s specific application. All rotary brushes are constructed from a high impact polymer base and nylon bristles. The bristles are tied into recessed holes with stainless steel wire. Yes, finally no more broken or lost bristles! There is no plywood base to delaminate. Our high quality brush construction ensures a longer brush life span.

Depending on application and use, brushes have lasted 6 to 9 months under daily use.

Brushes are available in standard sizes of 6”, 8”, 10”, 12” and 14”. Custom sizes are also available.

Please contact our engineering department for your specific cleaning application.

SubTek also manufacturers brushes for use with non-SubTek equipment.

Rotary Brush Styles

Flat Brush

The bristles are the same length. This brush is made to clean large flat smooth surfaces.

Rock Brush

All (3) rows of bristles are different lengths starting with the outer row being the longest. This style brush is perfect for rock work or uneven surfaces.

Bristle Types - Click on your application below
Smooth flat surfaces / New epoxy paint

Characteristics: New or newer epoxy gel coat surfaces, epoxy painted surfaces, vinyl liners and fiberglass pools

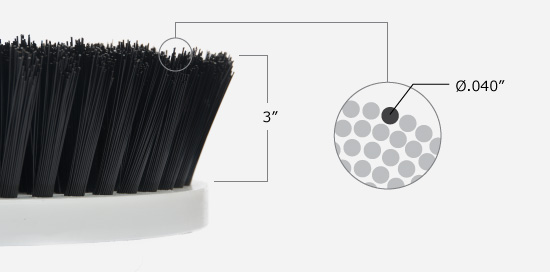

Recommendation: Flat brush with .040” dia. Nylon bristles with a minimum length of 3”. These paint safe brushes will effectively clean these surfaces without scratching.

Smooth flat surfaces

Characteristics: Older painted surfaces in good condition with little or no peeling paint.

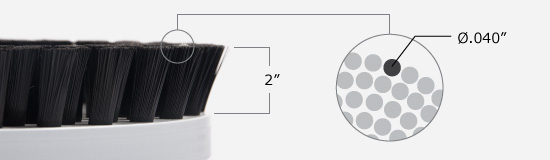

Recommendation: Flat brush with .040” dia. Nylon bristles with a 2” trim length. These paint safe brushes will effectively clean these surfaces without scratching.

Semi smooth surface in moderate to poor condition

Characteristics: peeling paint, heavy scratches, medium to heavy pitting; older painted surfaces in moderate to poor condition

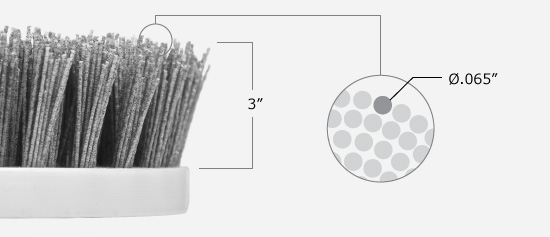

Recommendation: Flat brush with .065” diameter gray bristles with impregnated abrasive. A 3”minimum trim is recommended. For slightly less damaged surfaces the inner rows can be .040” diameter black Nylon bristles while the outer row would remain the gray .065” diameter bristles.

Smooth surface / Bare concrete or damaged paint

Characteristics: bare concrete and or very damaged paint

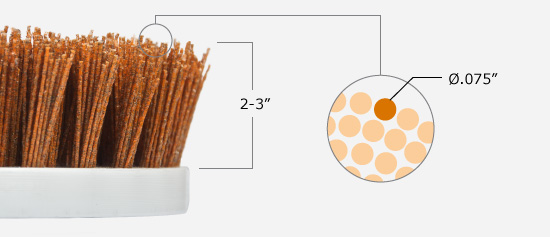

Recommendation: Flat brush with .075” diameter orange bristles with impregnated abrasive. A 2” to 3” trim is recommended.

Rock work / Medium pitting or minor scratches

Characteristics: Artificial rock work, rough syrfaces, older painted surfaces in good condition with little or no peeling paint.

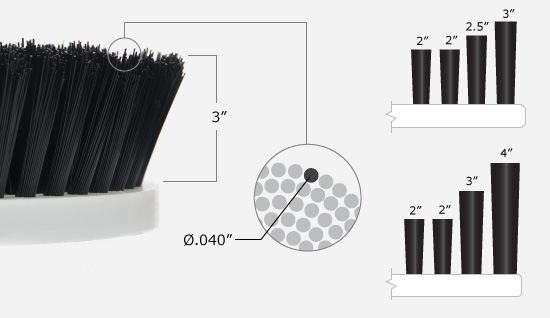

Recommendation: Rock brush with .040” diameter Nylon bristles. The trim varies by brush diameter, but we usually recommend a 3” outer row trim a 2 ½” second row trim, a 2” third and fourth row trim.

For more defined rock work we can recommend a 4” outer trim a 3” second row trim and a 2” third and fourth row trim.

Rough Rock Work

Characteristics: Rough rock work, very rough surface, peeling paint, heavy scratches, medium to heavy pitting. Older painted surfaces in moderate to poor condition.

Recommendation: Rock brush with .065” diameter gray bristles with impregnated abrasive bristles. For this type of surface we recommend a 4” outer trim a 3” second row trim and a 2” third and fourth row trim.

Extra rough surface / Rock work / Bare concrete

Characteristics: Very heavy rock work, bare concrete and or very damaged paint

Recommendation: Rock brush with .075” diameter orange bristles with impregnated abrasive. For this type of surface we recommend a 3” outer trim a 2 1/2” second row trim and a 2” third and fourth row trim.

Custom Hybrid Brushes
We also furnish brushes with a combination of bristle types. For instance, a flat brush with inner rows of .040 black poly and outer row of .065 gray.

General Purpose and Corner Cleaning
These hand brushes are excellent for scumline, corner, floor and wall cleaning.

Brush Recycling

Meridian SubTek is proud to offer brush recycling.
Send us the white poly brush base back with the bristles removed and we will rebristle the brush. Recycled brushes are priced at 20% less the cost of a new brush. The best part is that you are keeping the brush bases out of the landfill.
